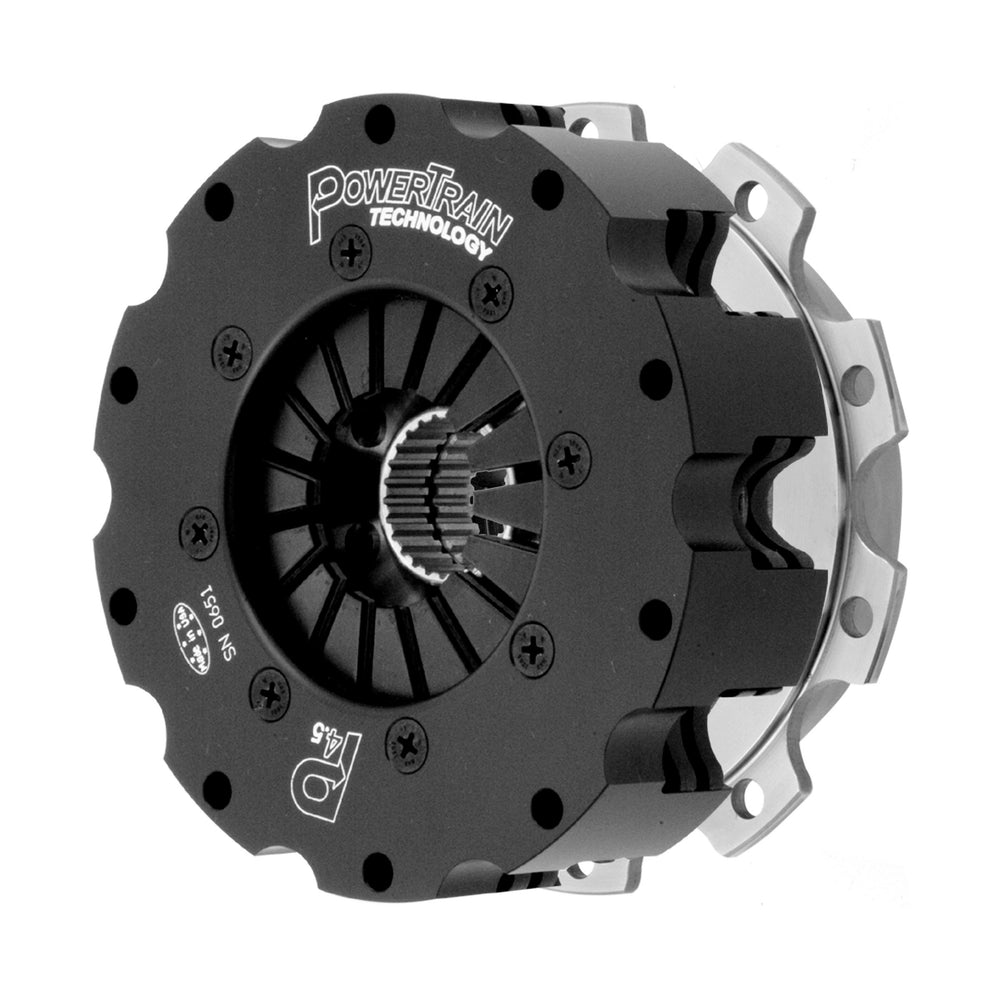

    PTT's 4.5" Power-V racing clutches are the lightest Moment of Inertia (M.O.I.) clutches in our product line. They have approximately half the M.O.I. of our 5.5" clutches. If the rules you race under allow a clutch this small, you cannot afford to pass up this speed advantage.

    The simple facts are this:

    A PTT 4.5" clutch makes your racecar accelerate faster. It lowers the rotating weight in your racecar's driveline, allowing your engine's horsepower to accelerate the car faster.

    A PTT 4.5" clutch also allows the car to decelerate faster without using up more of your brakes. There is less inertia in the drivetrain that the brakes have to slow down so you get more 'engine braking' with a lighter clutch.

    Quicker Shifting. The lower M.O.I. of the clutch discs allow quicker shifting and less wear on the synchros, or dog rings, in your transmission. Lower M.O.I. clutch discs change R.P.M. faster because they have very low stored inertia, causing less stress on transmission parts.

    PTT’s 4.5” clutch has 56% of the M.O.I. of a 5.5” clutch.  4.5” clutches are available in 1, 2, 3 or 4 disc configurations.

    When it is time to select a winning clutch for your racecar, remember:

    Lighter really is FASTER!

    When will my order ship?

    Click here for 4.5" Racing Clutch Catalog.

  • KC2128

    This kit includes:

    CC216A1Z80

    • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
    • 1-1/8” x 10 tooth spline (coarse spline)
    • Clutch torque capacity: 600 lb.ft. peak torque capacity
    • Designed for cars with 300 – 500 lb.ft. of engine torque
    • Weight = 4.17 pounds

    FC101

    • Lightweight 4.5” button flywheel
    • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
    • Weight = 1.77 pounds



      KC2828

      This kit includes:

      CC216A1Z80

      • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
      • 1-1/8” x 10 tooth spline (coarse spline)
      • Clutch torque capacity: 600 lb.ft. peak torque capacity
      • Designed for cars with 300 – 500 lb.ft. of engine torque
      • Weight = 4.17 pounds

      FC103

      • Lightweight 4.5” button flywheel
      • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
      • Weight = 1.89 pounds



        KC2028

        This kit includes:

        CC216A1Z80

        • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
        • 1-1/8” x 10 tooth spline (coarse spline)
        • Clutch torque capacity: 600 lb.ft. peak torque capacity
        • Designed for cars with 300 – 500 lb.ft. of engine torque
        • Weight = 4.17 pounds

        FC105

        • Lightweight 4.5” button flywheel
        • Fits Chevy LS V-8
        • Weight = 2.01 pounds



          KC2328

          This kit includes:

          CC216A1Z80

          • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
          • 1-1/8” x 10 tooth spline (coarse spline)
          • Clutch torque capacity: 600 lb.ft. peak torque capacity
          • Designed for cars with 300 – 500 lb.ft. of engine torque
          • Weight = 4.17 pounds

          FC301

          • Lightweight 4.5” button flywheel
          • Fit Ford SB V-8
          • Weight = 2.33 pounds



            KC2129

            This kit includes:

            CC216A1Z90

            • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
            • 1-5/32” x 26 tooth spline (fine spline)
            • Clutch torque capacity: 600 lb.ft. peak torque capacity
            • Designed for cars with 300 – 500 lb.ft. of engine torque
            • Weight = 4.17 pounds

            FC101

            • Lightweight 4.5” button flywheel
            • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
            • Weight = 1.77 pounds



              KC2829

              This kit includes:

              CC216A1Z90

              • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
              • 1-5/32” x 26 tooth spline (fine spline)
              • Clutch torque capacity: 600 lb.ft. peak torque capacity
              • Designed for cars with 300 – 500 lb.ft. of engine torque
              • Weight = 4.17 pounds

              FC103

              • Lightweight 4.5” button flywheel
              • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
              • Weight = 1.89 pounds



                KC2029

                This kit includes:

                CC216A1Z90

                • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                • 1-5/32” x 26 tooth spline (fine spline)
                • Clutch torque capacity: 600 lb.ft. peak torque capacity
                • Designed for cars with 300 – 500 lb.ft. of engine torque
                • Weight = 4.17 pounds

                FC105

                • Lightweight 4.5” button flywheel
                • Fits Chevy LS V-8
                • Weight = 2.01 pounds



                  KC2329

                  This kit includes:

                  CC216A1Z90

                  • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                  • 1-5/32” x 26 tooth spline (fine spline)
                  • Clutch torque capacity: 600 lb.ft. peak torque capacity
                  • Designed for cars with 300 – 500 lb.ft. of engine torque
                  • Weight = 4.17 pounds

                  FC301

                  • Lightweight 4.5” button flywheel
                  • Fits Ford SB V-8
                  • Weight = 2.33 pounds



                    KC2726

                    This kit includes:

                    CC216A1C63

                    • 4.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                    • 1” x 23 tooth spline
                    • Clutch torque capacity: 500 lb.ft. peak torque capacity
                    • Designed for cars with 250 – 400 lb.ft. of engine torque
                    • Weight = 4.17 pounds

                    FC501

                    • Lightweight 4.5” button flywheel
                    • Fits Mazda 4 cylinder, Formula SCCA
                    • Weight = 2.56 pounds





                      KC3128

                      This kit includes:

                      CC316A1Z80

                      • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                      • 1-1/8” x 10 tooth spline (coarse spline)
                      • Clutch torque capacity: 900 lb.ft. peak torque capacity
                      • Designed for cars with 450 – 700 lb.ft. of engine torque
                      • Weight = 5.35 pounds

                      FC101

                      • Lightweight 4.5” button flywheel
                      • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
                      • Weight = 1.77 pounds



                        KC3828

                        This kit includes:

                        CC316A1Z80

                        • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                        • 1-1/8” x 10 tooth spline (coarse spline)
                        • Clutch torque capacity: 900 lb.ft. peak torque capacity
                        • Designed for cars with 450 – 700 lb.ft. of engine torque
                        • Weight = 5.35 pounds

                        FC103

                        • Lightweight 4.5” button flywheel
                        • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
                        • Weight = 1.89 pounds



                          KC3028

                          This kit includes:

                          CC316A1Z80

                          • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                          • 1-1/8” x 10 tooth spline (coarse spline)
                          • Clutch torque capacity: 900 lb.ft. peak torque capacity
                          • Designed for cars with 450 – 700 lb.ft. of engine torque
                          • Weight = 5.35 pounds

                          FC105

                          • Lightweight 4.5” button flywheel
                          • Fits Chevy LS V-8
                          • Weight = 2.01 pounds



                            KC3328

                            This kit includes:

                            CC316A1Z80

                            • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                            • 1-1/8” x 10 tooth spline (coarse spline)
                            • Clutch torque capacity: 900 lb.ft. peak torque capacity
                            • Designed for cars with 450 – 700 lb.ft. of engine torque
                            • Weight = 5.35 pounds

                            FC301

                            • Lightweight 4.5” button flywheel
                            • Fits Ford SB V-8
                            • Weight = 2.33 pounds



                              KC3129

                              This kit includes:

                              CC316A1Z90

                              • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                              • 1-5/32” x 26 tooth spline (fine spline)
                              • Clutch torque capacity: 900 lb.ft. peak torque capacity
                              • Designed for cars with 450 – 700 lb.ft. of engine torque
                              • Weight = 5.35 pounds

                              FC101

                              • Lightweight 4.5” button flywheel
                              • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
                              • Weight = 1.77 pounds



                                KC3829

                                This kit includes:

                                CC316A1Z90

                                • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                • 1-5/32” x 26 tooth spline (fine spline)
                                • Clutch torque capacity: 900 lb.ft. peak torque capacity
                                • Designed for cars with 450 – 700 lb.ft. of engine torque
                                • Weight = 5.35 pounds

                                FC103

                                • Lightweight 4.5” button flywheel
                                • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
                                • Weight = 1.89 pounds



                                  KC3029

                                  This kit includes:

                                  CC316A1Z90

                                  • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                  • 1-5/32” x 26 tooth spline (fine spline)
                                  • Clutch torque capacity: 900 lb.ft. peak torque capacity
                                  • Designed for cars with 450 – 700 lb.ft. of engine torque
                                  • Weight = 5.35 pounds

                                  FC105

                                  • Lightweight 4.5” button flywheel
                                  • Fits Chevy LS V-8
                                  • Weight = 2.01 pounds



                                    KC3329

                                    This kit includes:

                                    CC316A1Z90

                                    • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                    • 1-5/32” x 26 tooth spline (fine spline)
                                    • Clutch torque capacity: 900 lb.ft. peak torque capacity
                                    • Designed for cars with 450 – 700 lb.ft. of engine torque
                                    • Weight = 5.35 pounds

                                    FC301

                                    • Lightweight 4.5” button flywheel
                                    • Fits Ford SB V-8
                                    • Weight = 2.33 pounds



                                      KC3726

                                      This kit includes:

                                      CC316A1C63

                                      • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                      • 1” x 23 tooth spline
                                      • Clutch torque capacity: 600 lb.ft. peak torque capacity
                                      • Designed for cars with 300 – 480 lb.ft. of engine torque
                                      • Weight = 5.35 pounds

                                      FC501

                                      • Lightweight 4.5” button flywheel
                                      • Fits Mazda 4 cylinder, Formula SCCA
                                      • Weight = 2.56 pounds
