7.25” Racing Clutch & Flywheel

  • 7.25” Racing Clutch & Flywheel
  • 7.25” Racing Clutch & Flywheel
  • 7.25” Racing Clutch & Flywheel
  • 7.25” Racing Clutch & Flywheel
  • 7.25” Racing Clutch & Flywheel

7.25” Racing Clutch & Flywheel

1

  • Don’t see your configuration?

    Call us at 714-630-2764 or email: info@mcleodracing.com

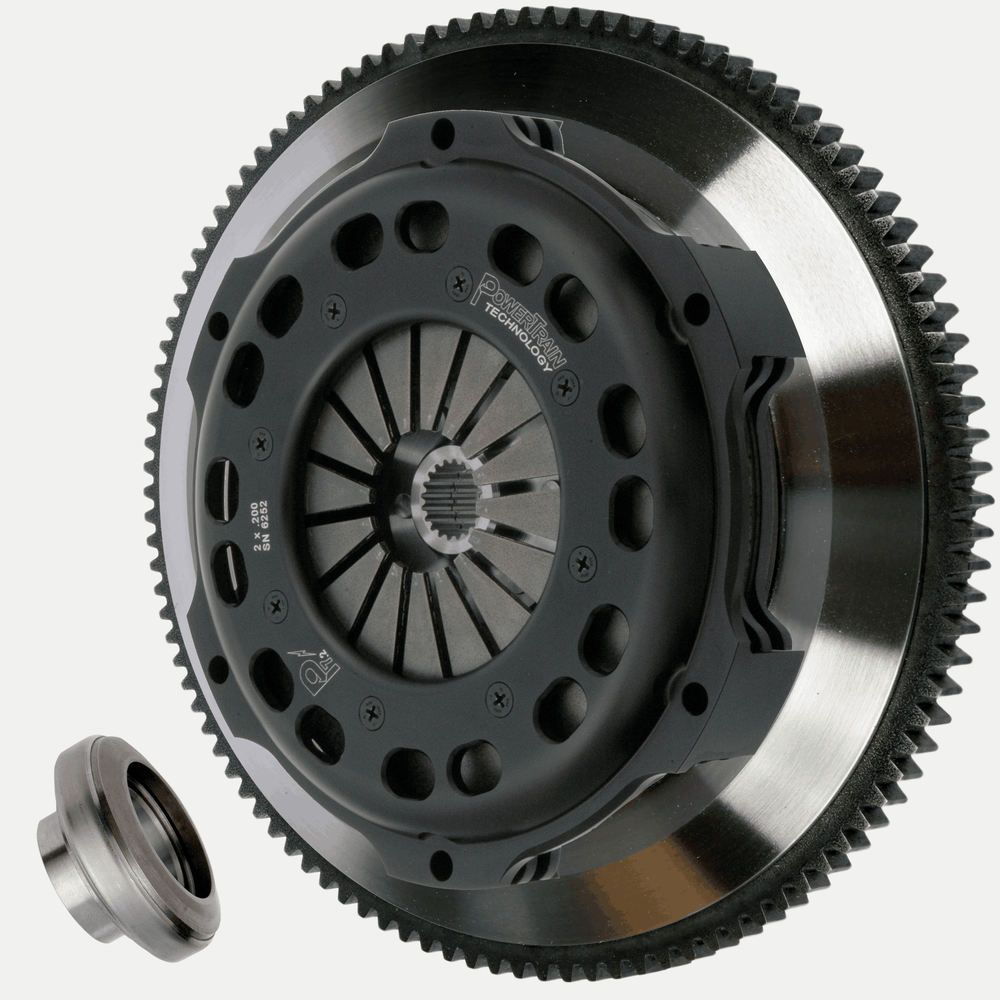

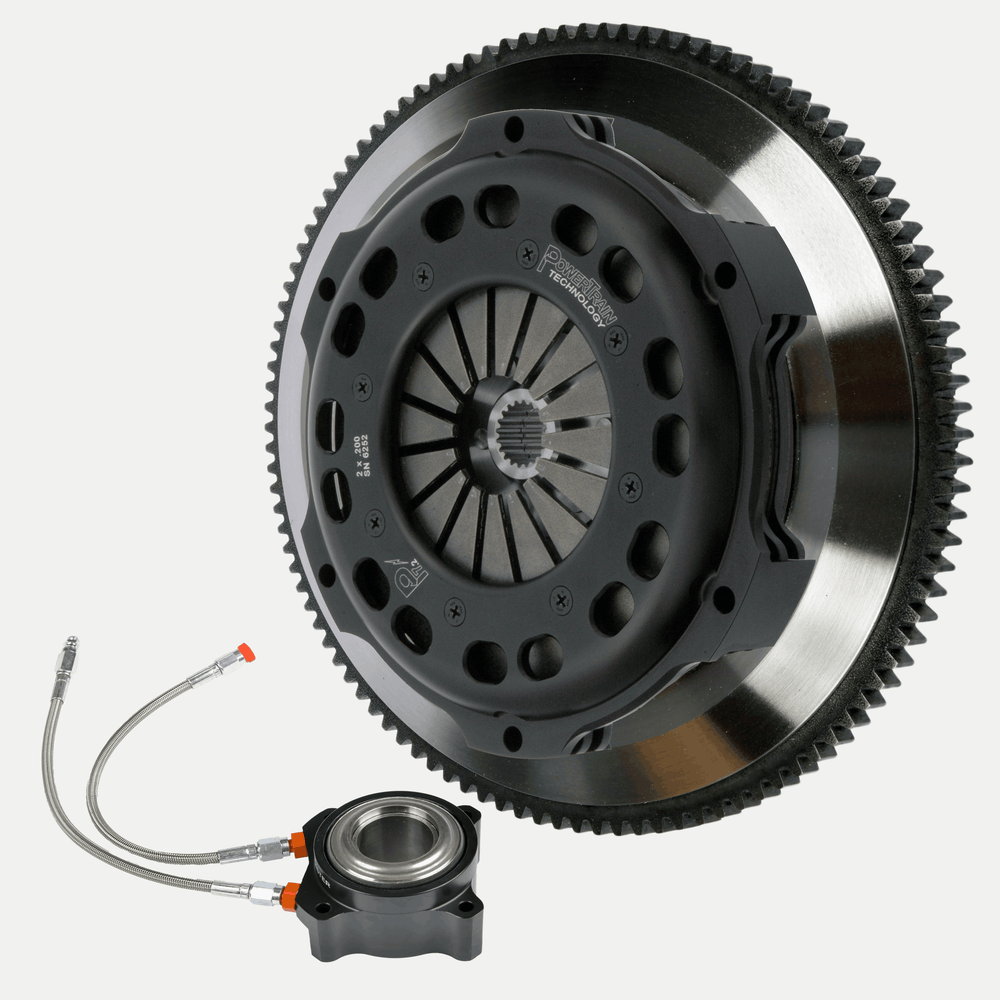

    PTT's 7.25" Power-V racing clutches and button style flywheels are the most economical way to get into a true racing clutch. They have all the same race winning qualities and reliability of PTT's 5.5" and 4.5" clutches. PTT's clutches feature proprietary, micro finished, friction material. They do not require bedding-in, have longer life as a result, and have a smooth easy-driving engagement.

    All of PTT's clutches feature the Power-V drive system. PTT President Steve Fox invented this drive system for modern racing clutches back in 1997. The benefits of this type of drive are many. The angled Power-V drive legs make the floater plates self-centering, it evens out the drive forces in the clutch, and provides for inherent dynamic balance. The resulting increased surface area of the Power-V lowers stress in the clutch as well, allowing longer life of component parts.

    A PTT 7.25" clutch has a much lower M.O.I. than a stock style clutch and up to 20% lower than other manufacturers' equivalent racing clutches. This lower M.O.I. allows faster acceleration, decreased brake wear on deceleration, quicker shifting, and reduced synchro, or dog ring wear, in your transmission.

    7.25” button style flywheels are available in a lightweight scalloped design and super-lightweight drilled for the lowest M.O.I. available.  Call us for super-lightweight options.

    Changing from a 10.5” stock clutch to PTT’s 7.25” clutch will feel like your engine makes an extra 25 horsepower.  7.25” clutches are available in 1, 2, 3 or 4 disc configurations.

    When will my order ship?

    Click here for 7.25" Racing Clutch Catalog.

    Click here for 7.25" Mitsubishi Clutch Catalog.

  • KH2128

    This kit includes:

    CH216A1Z80

    • 7.25” 2 disc clutch with .105” thick sintered bronze metallic discs
    • 1-1/8” x 10 tooth spline (coarse spline)
    • Clutch torque capacity: 680 lb.ft. peak torque capacity
    • Designed for cars with 340 – 540 lb.ft. of engine torque
    • Weight = 7.55 pounds

    FH101

    • Lightweight 7.25” button flywheel
    • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
    • Weight = 3.67 pounds
